LM Roller | Resin retainer Model LRB-Z

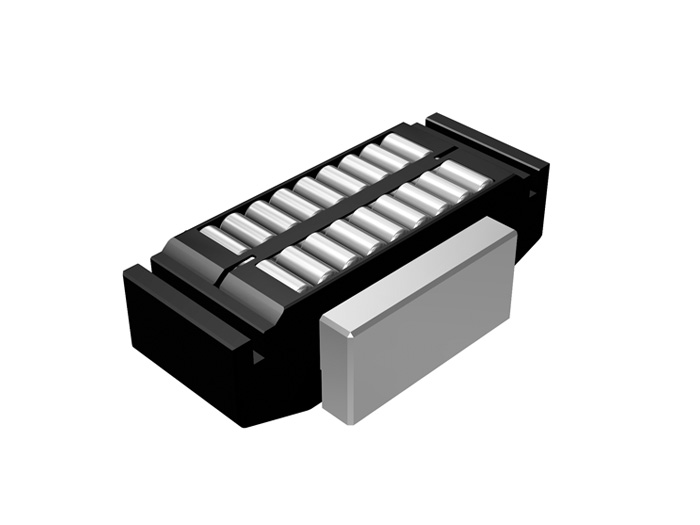

Resin retainer Model LRB-Z
Giá :
Liên Hệ
Hotline: 0984 005 055 - 0949 558 179
- Chi Tiết Sản Phẩm
Information
A lighter type that uses a resin retainer and is designed to be mounted in the same manner as model LRB. Since it has a groove for installing a seal, a special rubber seal with a high contamination protection effect can easily be attached. In addition, this model is capable of traveling at high speed of 1 m/s.
Dimensional drawing
|
Model No. |
Main dimensions |
Basic load rating |
||||
|
W1 |
Length |
Thickness |
Width |
Dynamic rating |
Static rating |
|
|
mm |
mm |
mm |
mm |
kN |
kN |
|
|
LRB 1547Z |
15 |
47 |
17 |
22.2 |
21.6 |
39.9 |
|
LRB 2055Z |
20 |
55 |
18 |
30 |
38.9 |
84.9 |
|
LRB 2565Z |
25 |
65 |
21 |
38.1 |
55 |
113 |
|
LRB 3275Z |
32 |
75 |
22 |
45 |
88 |
208 |
