Flat Roller | V Groove Type Model FTW
- Chi Tiết Sản Phẩm
FTW-V

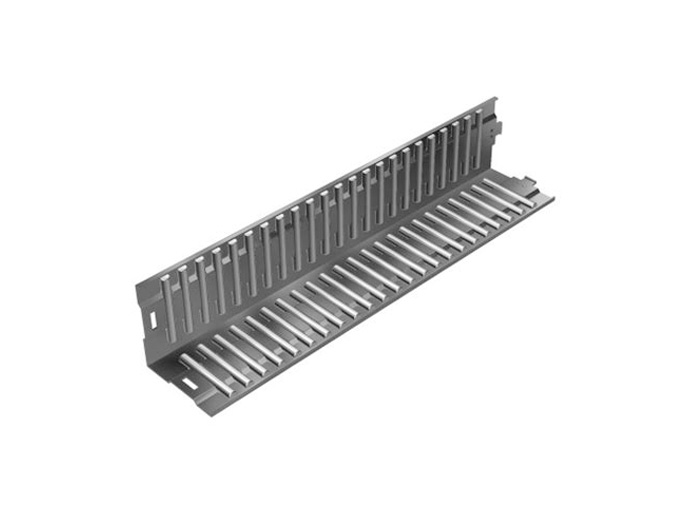

These models have two or more rows of rollers, and their cages are shaped to bend at 90°.Each model uses rollers with a diameter 0.7071 times greater than that of the rollers on the flat surface so that model FT or FT-V can be mounted on the 90° V surface at the same height if model FT or FT-V is used on the flat surface.

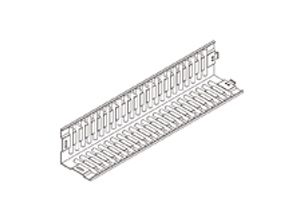

Dimensional drawing
|
Model No. |
Main dimensions |
Roller dimensions |
Basic load rating |
||
|
Width |
Length |
Diameter |
Dynamic rating |
Static rating |
|
|
mm |
mm |
mm |
kN |
kN |
|
|
FTW 4030V-150 |
30 |
150 |
2.828 |
59 |
220 |
|
FTW 5035V-250 |
35 |
250 |
3.535 |
102 |
411 |
|
FTW 10036V-380 |
36 |
380 |
7.071 |
149 |
507 |
|
FTW 10043.5V-380 |
43.5 |
380 |
7.071 |
182 |
660 |
|
FTW 10070V-500 |
70 |
500 |
7.071 |
394 |
1804 |
FTW
These models have two or more rows of rollers, and their cages are shaped to bend at 90°.Each model uses rollers with a diameter 0.7071 times greater than that of the rollers on the flat surface so that model FT or FT-V can be mounted on the 90° V surface at the same height if model FT or FT-V is used on the flat surface.
Dimensional drawing
|
Model No. |
Main dimensions |
Roller dimensions |
Basic load rating |
||
|
Width |
Length |
Diameter |
Dynamic rating |
Static rating |
|
|
mm |
mm |
mm |
kN |
kN |
|
|
FTW 5045-250 |
45 |
250 |
5 |
142 |
548 |
|
FTW 5050-250 |
50 |
250 |
5 |
160 |
634 |
|
FTW 6022.4-320 |
22.4 |
320 |
6 |
53 |
141 |
