Slide Pack | Model FBW2560XR

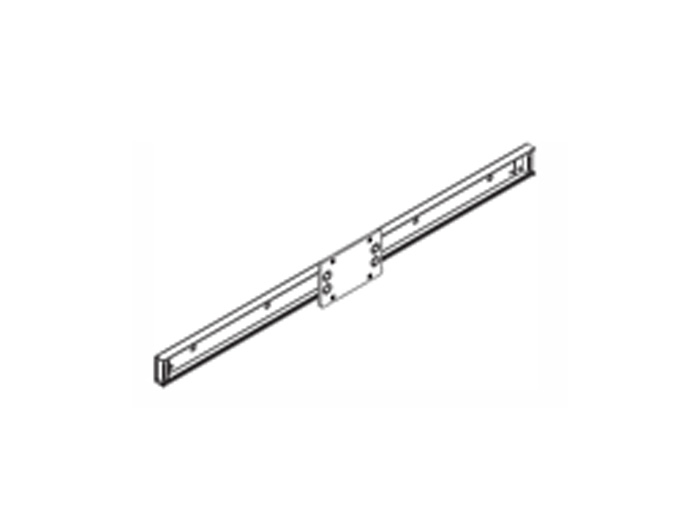

Model FBW2560XR
Giá :
Liên Hệ
Hotline: 0984 005 055 - 0949 558 179
- Chi Tiết Sản Phẩm
Information
This model is a compact type.
Dimensional drawing
|
Model No. |
Main dimensions |
Static Permissible Load |
||||
|
Rail dimensions |
Stroke Length ST |
|||||
|
Length |
without seal |
with seal |
Pa |
Pb |
Pc |
|
|
mm |
mm |
mm |
N |
N |
N |
|
|
FBW2560XR+160L |
160 |
88 |
83 |
590 |
150 |
70 |
|
FBW2560XR+240L |
240 |
168 |
163 |
590 |
150 |
70 |
|
FBW2560XR+320L |
320 |
248 |
243 |
590 |
150 |
70 |
|
FBW2560XR+400L |
400 |
328 |
323 |
590 |
150 |
70 |
|
FBW2560XR+480L |
480 |
408 |
403 |
590 |
150 |
70 |
|
FBW2560XR+560L |
560 |
488 |
483 |
590 |
150 |
70 |
|
FBW2560XR+640L |
640 |
568 |
563 |
590 |
150 |
70 |
|
FBW2560XR+720L |
720 |
648 |
643 |
590 |
150 |
70 |
|
FBW2560XR+800L |
800 |
728 |
723 |
590 |
150 |
70 |
|
FBW2560XR+880L |
880 |
808 |
803 |
590 |
150 |
70 |
|
FBW2560XR+960L |
960 |
888 |
883 |
590 |
150 |
70 |
|
FBW2560XR+1040L |
1040 |
968 |
963 |
590 |
150 |
70 |
|
FBW2560XR+1200L |
1200 |
1128 |
1123 |
590 |
150 |
70 |
