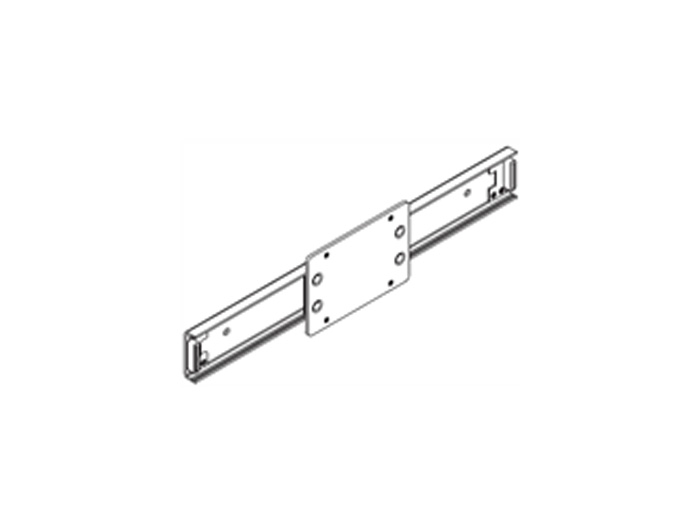

Slide Pack | Model FBW50110XR
Model FBW50110XR
Giá :
Liên Hệ
Hotline: 0984 005 055 - 0949 558 179
- Chi Tiết Sản Phẩm
Information
This model is a compact type.
Dimensional drawing
|
Model No. |
Main dimensions |
Static Permissible Load |
||||
|
Rail dimensions |
Stroke Length ST |
|||||
|
Length |
without seal |
with seal |
Pa |
Pb |
Pc |
|
|
mm |
mm |
mm |
N |
N |
N |
|
|
FBW50110XR+300L |
300 |
170 |
164 |
1960 |
500 |
390 |
|
FBW50110XR+350L |
350 |
220 |
214 |
1960 |
500 |
390 |
|
FBW50110XR+400L |
400 |
270 |
264 |
1960 |
500 |
390 |
|
FBW50110XR+450L |
450 |
320 |
314 |
1960 |
500 |
390 |
|
FBW50110XR+500L |
500 |
370 |
364 |
1960 |
500 |
390 |
|
FBW50110XR+600L |
600 |
470 |
464 |
1960 |
500 |
390 |
|
FBW50110XR+700L |
700 |
570 |
564 |
1960 |
500 |
390 |
|
FBW50110XR+800L |
800 |
670 |
664 |
1960 |
500 |
390 |
|
FBW50110XR+900L |
900 |
770 |
764 |
1960 |
500 |
390 |
|
FBW50110XR+1000L |
1000 |
870 |
864 |
1960 |
500 |
390 |
|
FBW50110XR+1200L |
1200 |
1070 |
1064 |
1960 |
500 |
390 |
|
FBW50110XR+1500L |
1500 |
1370 |
1364 |
1960 |
500 |
390 |
|
FBW50110XR+1800L |
1800 |
1670 |
1664 |
1960 |
500 |
390 |
