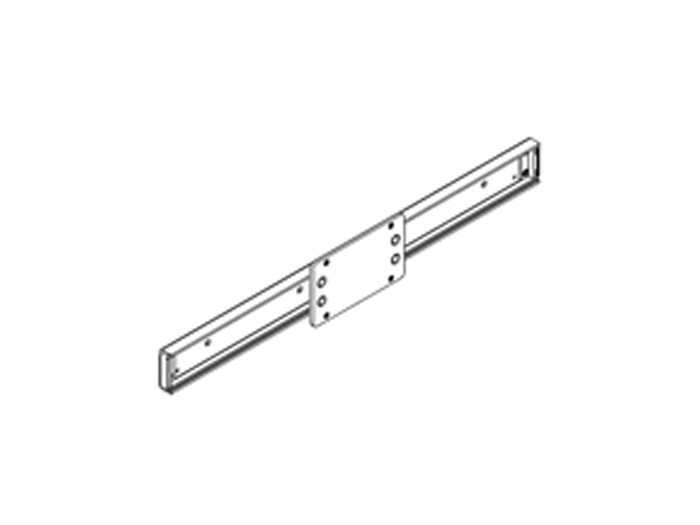

Slide Pack | Model FBW3590XR
Model FBW3590XR
Giá :
Liên Hệ
Hotline: 0984 005 055 - 0949 558 179
- Chi Tiết Sản Phẩm
Information
This model is a compact type.
Dimensional drawing
|
Model No. |
Main dimensions |
Static Permissible Load |
||||
|
Rail dimensions |
Stroke Length ST |
|||||
|
Length |
without seal |
with seal |
Pa |
Pb |
Pc |
|
|
mm |
mm |
mm |
N |
N |
N |
|
|
FBW3590XR+300L |
300 |
200 |
195 |
880 |
200 |
100 |
|
FBW3590XR+350L |
350 |
250 |
245 |
880 |
200 |
100 |
|
FBW3590XR+400L |
400 |
300 |
295 |
880 |
200 |
100 |
|
FBW3590XR+450L |
450 |
350 |
345 |
880 |
200 |
100 |
|
FBW3590XR+500L |
500 |
400 |
395 |
880 |
200 |
100 |
|
FBW3590XR+550L |
550 |
450 |
445 |
880 |
200 |
100 |
|
FBW3590XR+600L |
600 |
500 |
495 |
880 |
200 |
100 |
|
FBW3590XR+650L |
650 |
550 |
545 |
880 |
200 |
100 |
|
FBW3590XR+700L |
700 |
600 |
595 |
880 |
200 |
100 |
|
FBW3590XR+750L |
750 |
650 |
645 |
880 |
200 |
100 |
|
FBW3590XR+800L |
800 |
700 |
695 |
880 |
200 |
100 |
|
FBW3590XR+900L |
900 |
800 |
795 |
880 |
200 |
100 |
|
FBW3590XR+1000L |
1000 |
900 |
895 |
880 |
200 |
100 |
|
FBW3590XR+1200L |
1200 |
1100 |
1095 |
880 |
200 |
100 |
|
FBW3590XR+1500L |
1500 |
1400 |
1395 |
880 |
200 |
100 |
|
FBW3590XR+1800L |
1800 |
1700 |
1695 |
880 |
200 |
100 |
